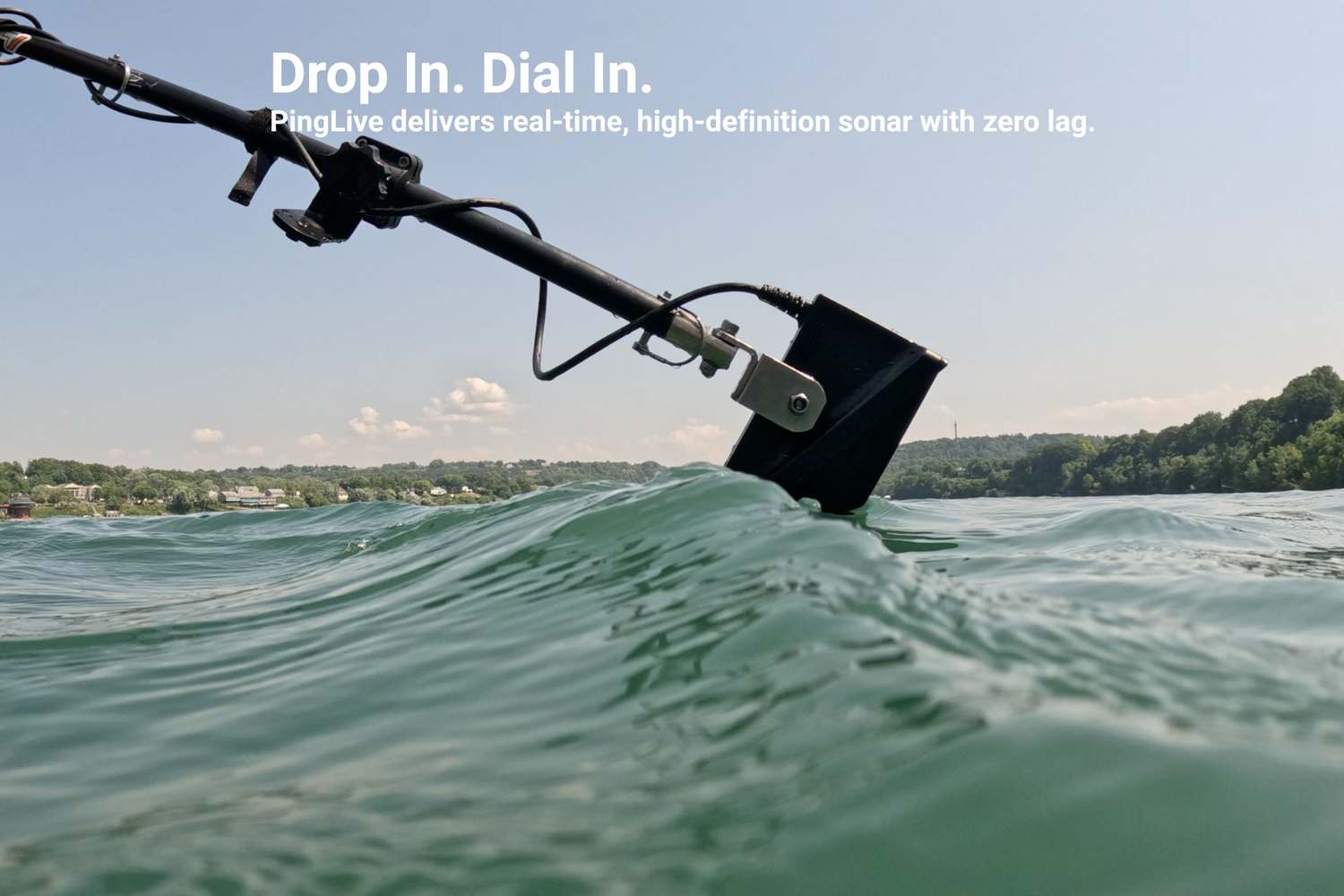

PingLive Sonar is an innovative wireless Live Sonar system that uses your Phone or Tablet as the display via Wi-Fi connection. The transducer unit features an integrated processor, eliminating the need for a separate black box and reducing number of wires by 50% compared to traditional LiveSonar systems. With the included Wi-Fi Router, the transducer transmits sonar data to your screen, delivering sharp, real-time underwater visuals with minimal setup.
PLUG & PLAY

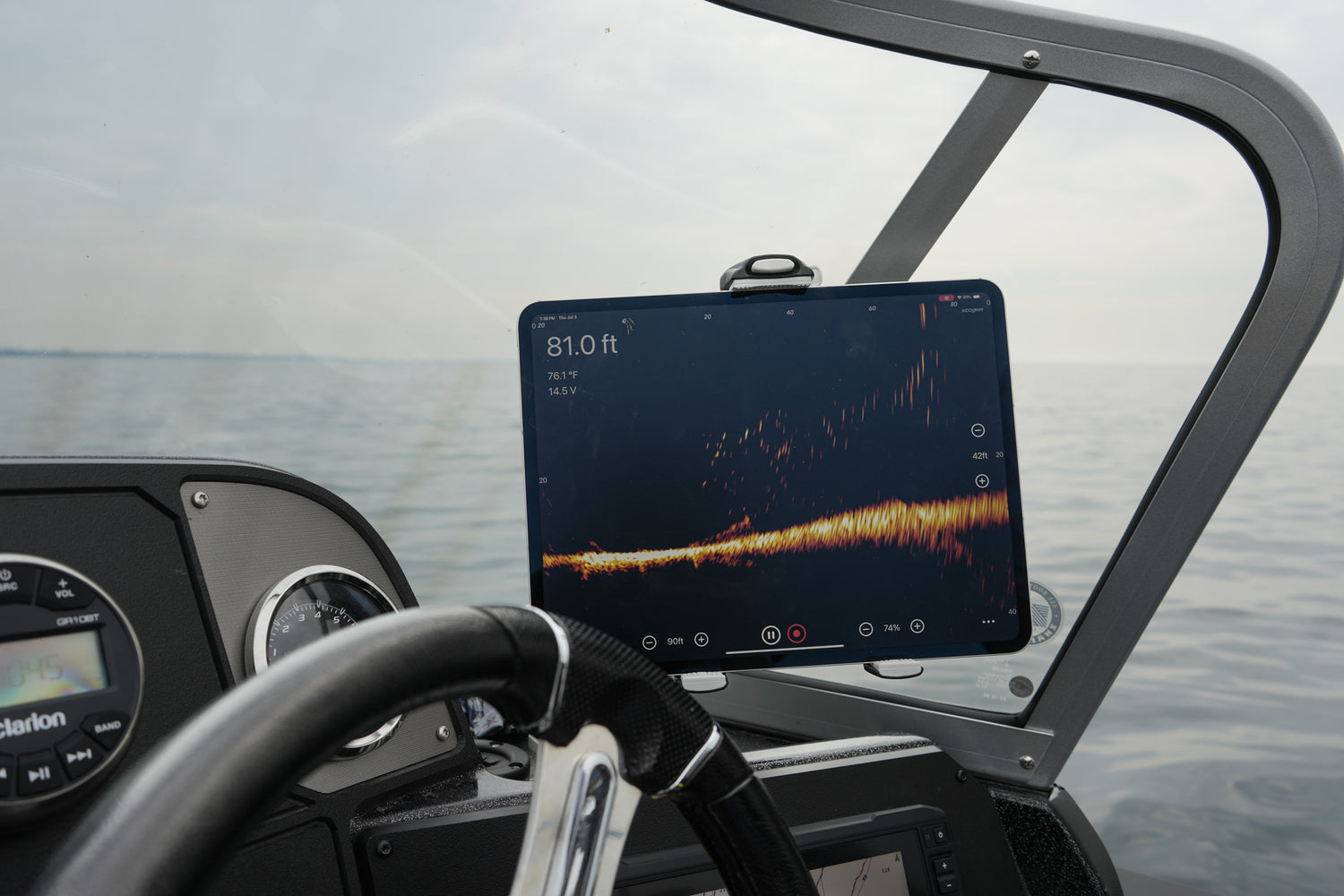

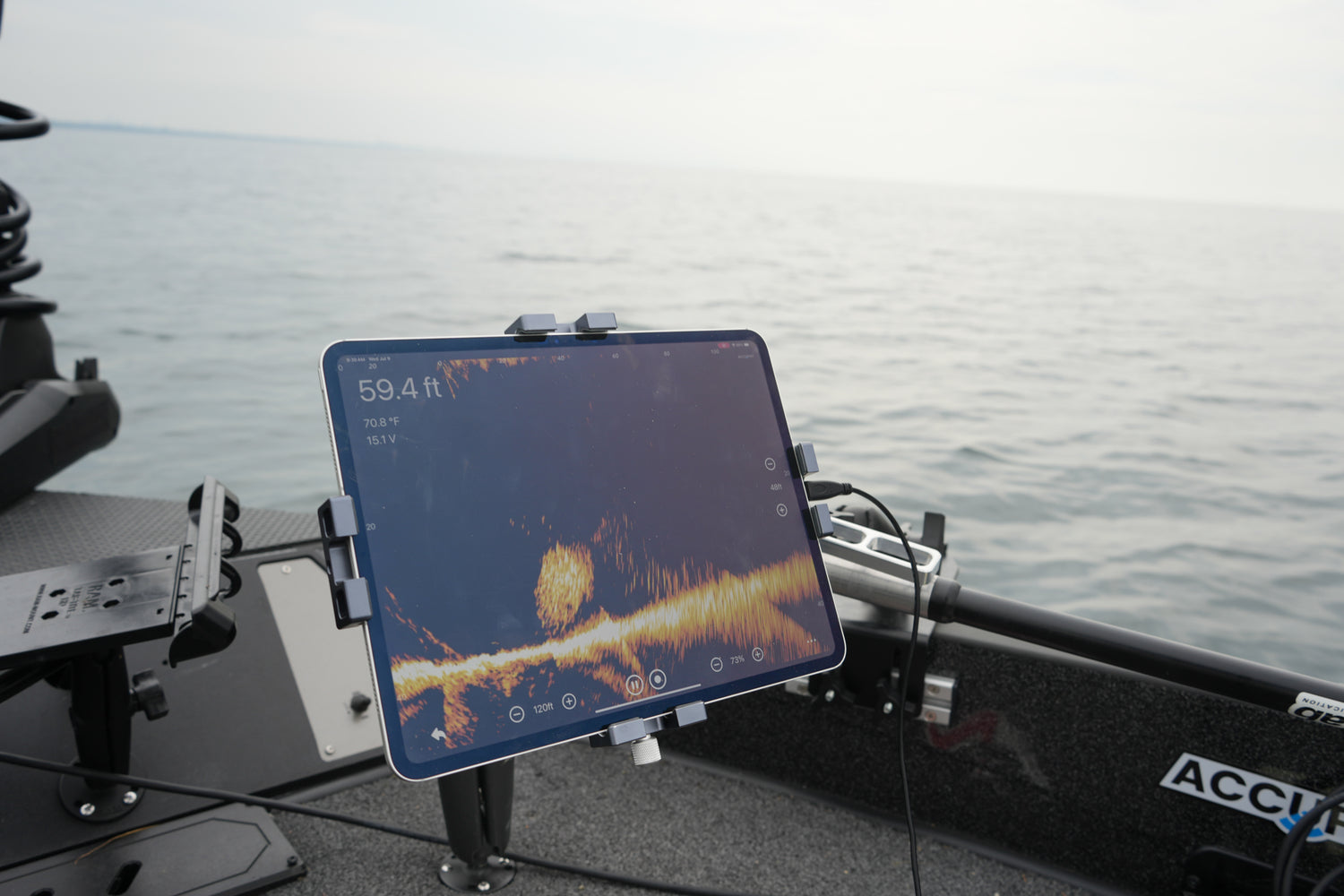

View and control live image with Phone or Tablet (iOS & Android)
Connect to your phone or tablet via WiFi, open the APP — it's that easy!
*compatible models can be found in FAQ
Viewing modes
Panoramic View scan large areas to easily spot structures and fish
Down View designed to see the activity beneath your boat with a 135-degree view or directly beneath an ice hole

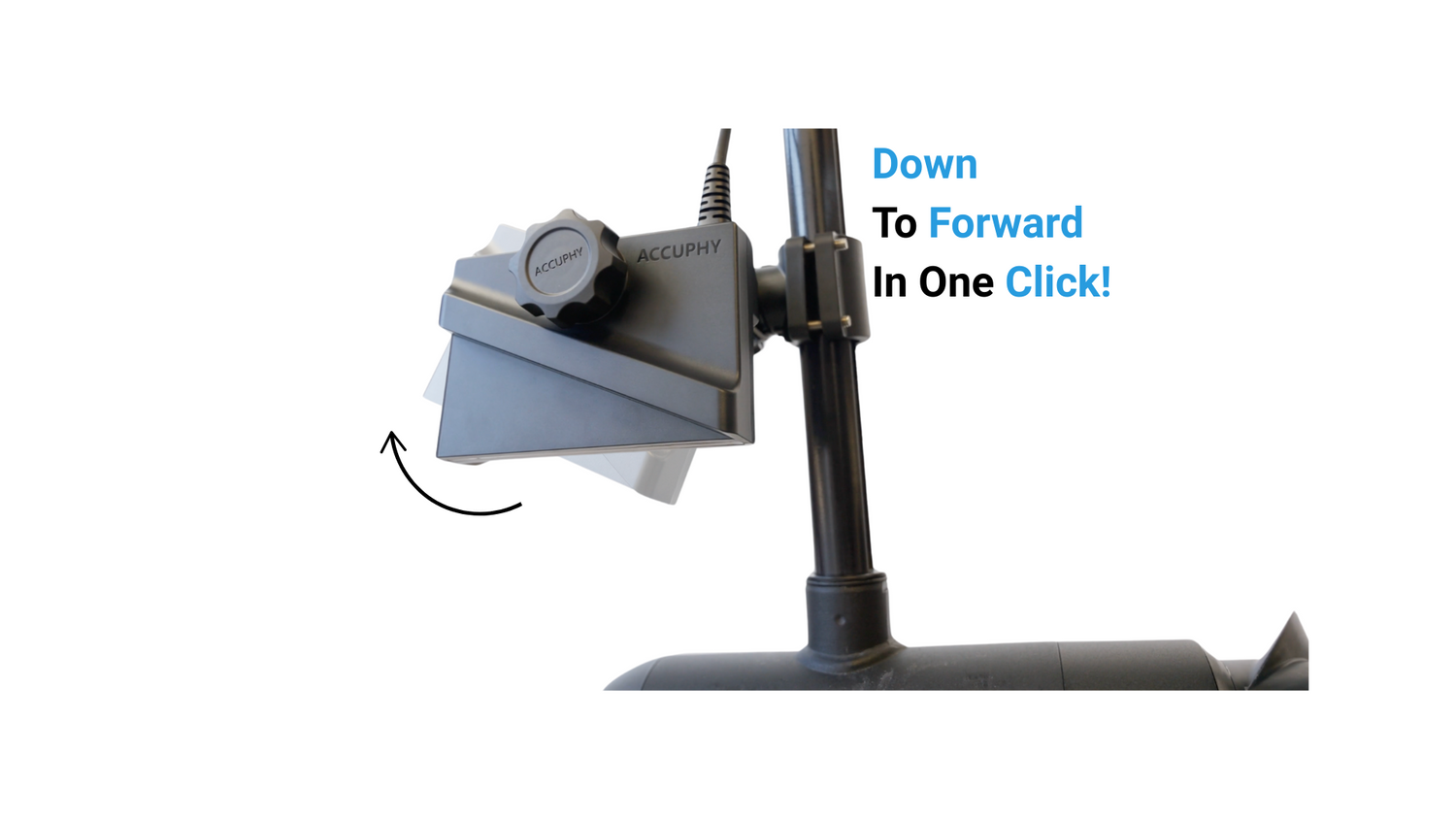

Forward View to cover various fishing scenarios
Innovative Design

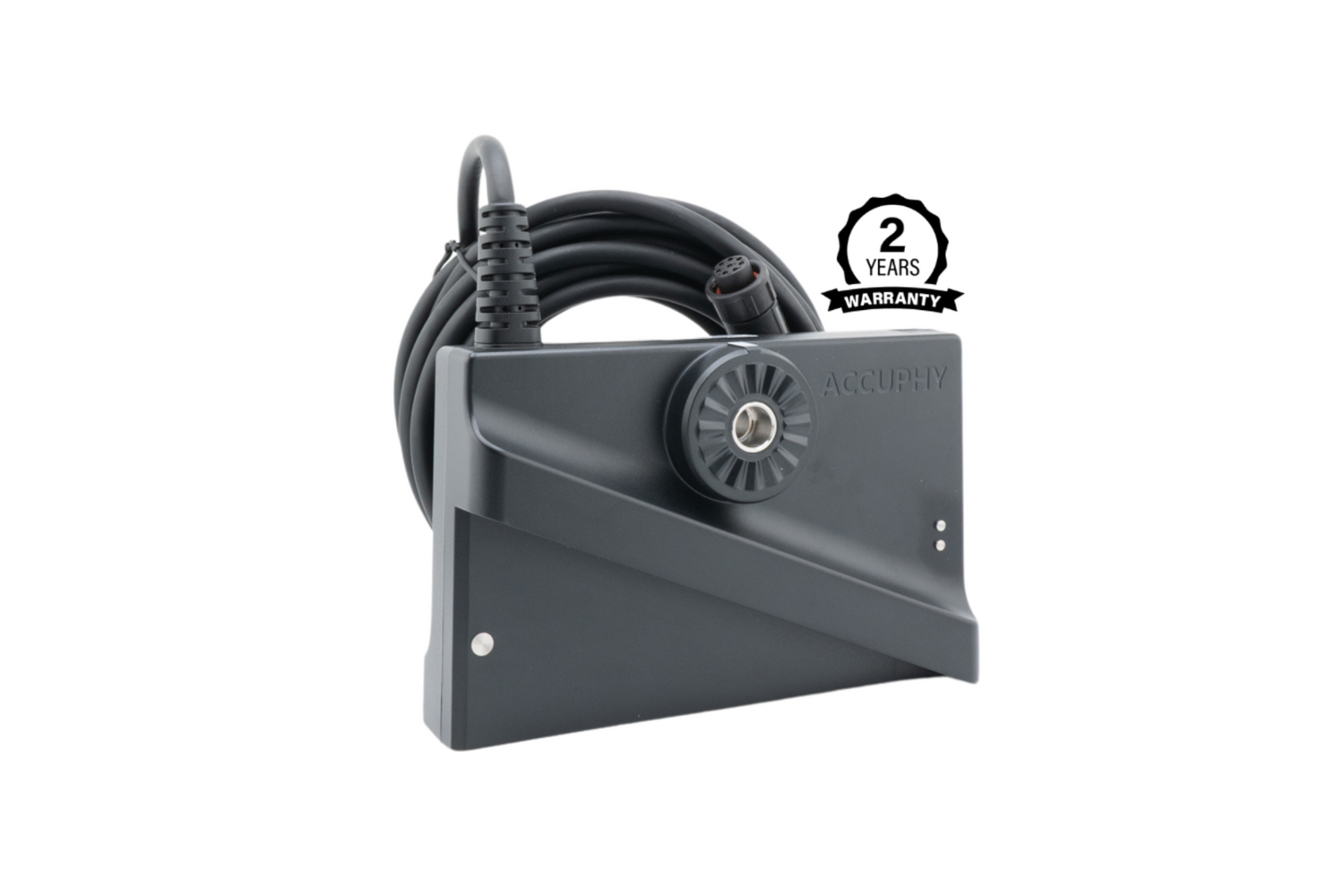

Built-In Processor - No more bulky black box needed! Featuring an integrated processor within the sonar unit.
Reinforced cable - 20FT durable and lightweight sonar cable (260g), built for long-term reliability—perfect for boats, docks, and ice fishing.
Compatible Devices
Find the complete list of Apple and Android devices that are compatible with PingLive below, so you can confirm your device works seamlessly.
You can test compatibility by downloading the Android “Accuphy Sonar” BETA app. Once installed, open the app, go to Settings, and enable Simulator Mode. If the app runs smoothly in Simulator Mode, your device should have no trouble running our products.
Product Specifications

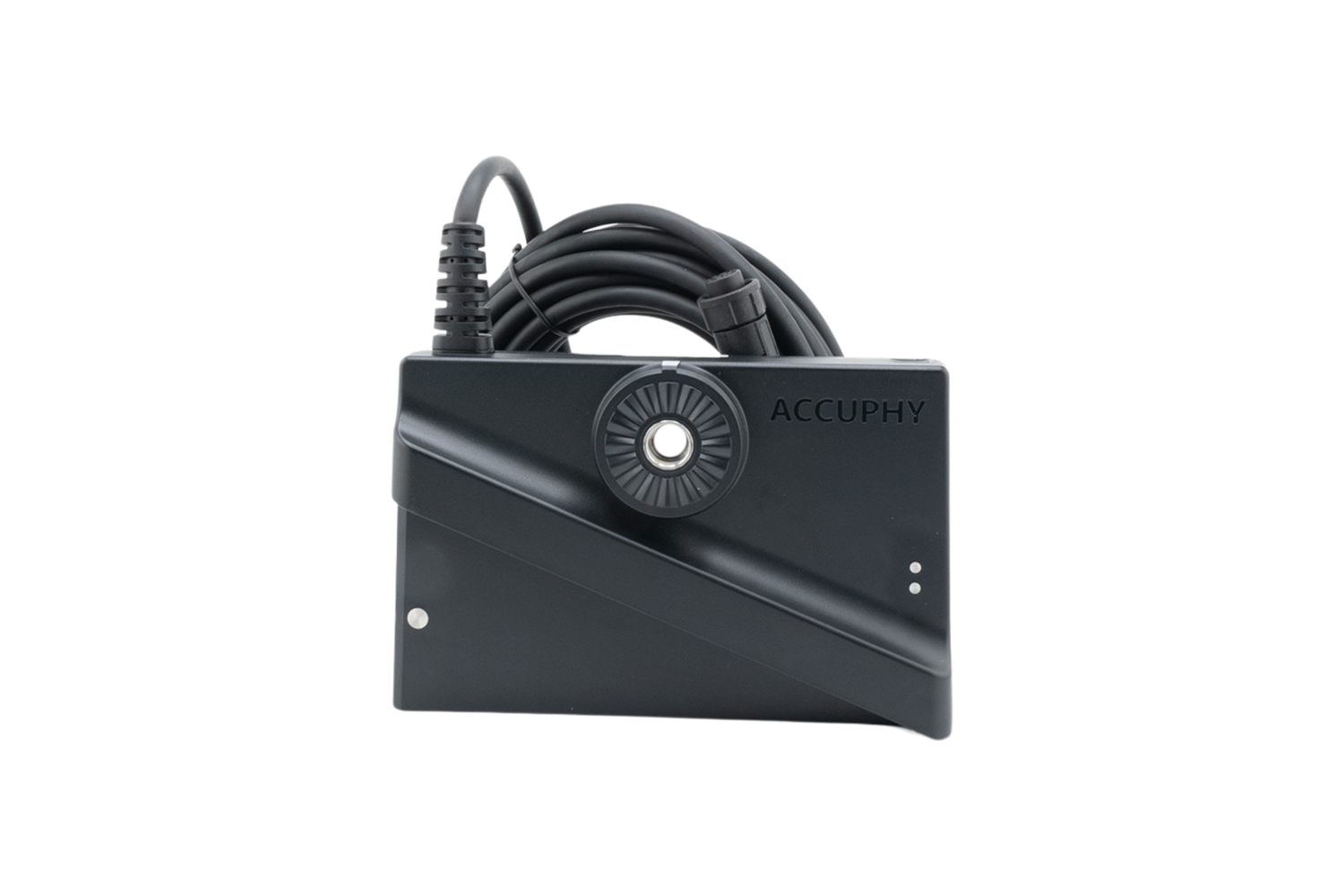

Transducer Specifications
Dimensions: 6.3 x 4.1 x 1.9 in. Weight: 1080g (with cable) Frequencies: 450 - 1,100 kHz Power Usage: 22W typical, 40W max Operating Temperature: 0°C to 40°C Maximum Depth/Distance: 91m (300ft.)
Wi-Fi Router One Specifications
Dimensions: 3.35 x 2.95 x 1.38 in Weight: 0.2 kg Temperature Range: -20°C to 40°C Transducer Ports: 1 Power Input: 11-18 VDC Power Usage: 3W typical, 6W max Frequency: 2.4/5.8GHz Wi-Fi Modes: IEEE802.11A/B/G/N/AC Wi-Fi Effective Range: 100 ft*
*A power source capable of supplying at least 6A output is required for optimal performance.
"I fish on ice, from a float tube, and by boat. I’ve tested most sonar brands, and honestly, Accuphy delivers the same level of performance as the big names.The image clarity is impressive. It’s super easy to install: two wires, just connect it to a battery, link your tablet or phone to the Wi-Fi, and you're fishing."
