PingLive Sonar
- Sold out online. Ships in 2 weeks, or available now at select local retailers.
Description
Overview
PingLive Sonar is an innovative wireless Live Sonar system that uses your Phone or Tablet as the display via Wi-Fi connection. The transducer unit features an integrated processor, eliminating the need for a separate black box and reducing number of wires by 50% compared to traditional LiveSonar systems. With the included Wi-Fi Router, the transducer transmits sonar data to your screen, delivering sharp, real-time underwater visuals with minimal setup.
PLUG & PLAY
- View and control live image with Phone or Tablet (iOS & Android)
- Connect to your phone or tablet via WiFi, open the APP — it's that easy!
Viewing modes
- Panoramic View scan large areas to easily spot structures and fish
- Down View designed to see the activity beneath your boat with a 135-degree view or directly beneath an ice hole
- Forward View to cover various fishing scenarios
Innovative Design
- Built-In Processor - No more bulky black box needed! Featuring an integrated processor within the sonar unit.
-
Reinforced cable - 20FT durable and lightweight sonar cable (260g), built for long-term reliability—perfect for boats, docks, and ice fishing.
Product Specifications

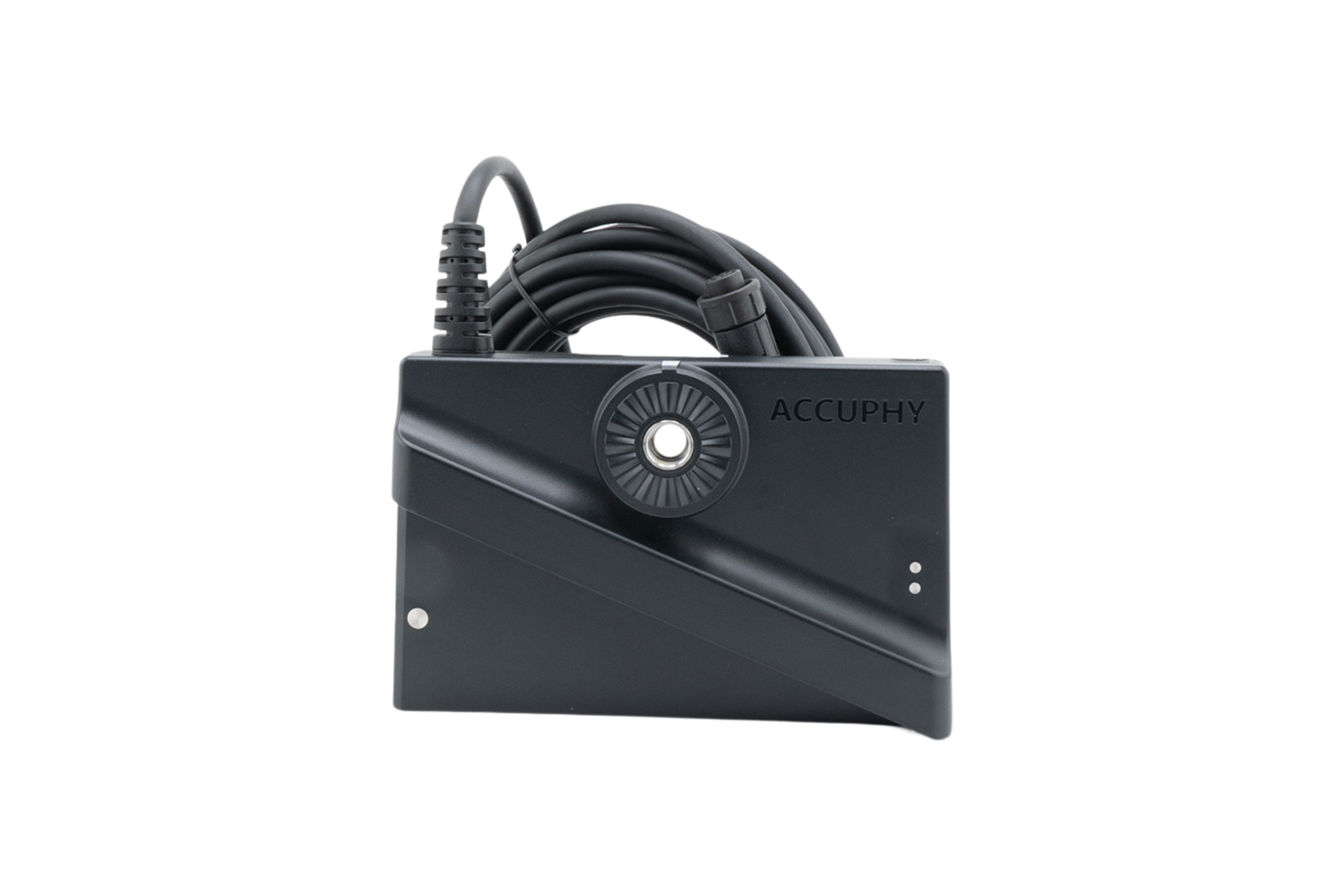

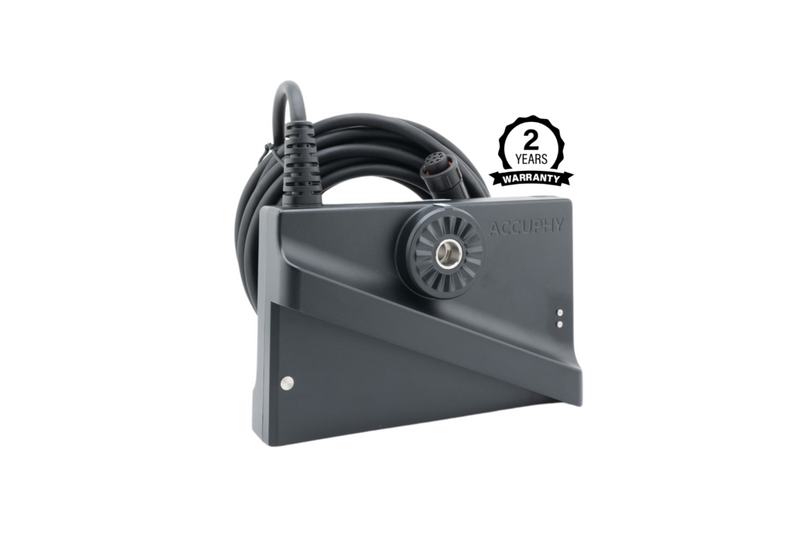

Transducer Specifications
Dimensions: 6.3 x 4.1 x 1.9 in.
Weight: 1080g (with cable)
Frequencies: 450 - 1,100 kHz
Power Usage: 22W typical, 40W max
Operating Temperature: 0°C to 40°C
Maximum Depth/Distance: 91m (300ft.)
Router One Specifications
Dimensions: 3.35 x 2.95 x 1.38 in
Weight: 0.12 kg
Temperature Range: -20°C to 40°C
Transducer Ports: 1
Power Input: 11-18 VDC
Power Usage: 3W typical, 6W max
Frequency: 2.4/5.8GHz
Wi-Fi Modes: IEEE802.11A/B/G/N/AC
Wi-Fi Effective Range: 70 ft*
*A power source capable of supplying at least 6A output is required for optimal performance.

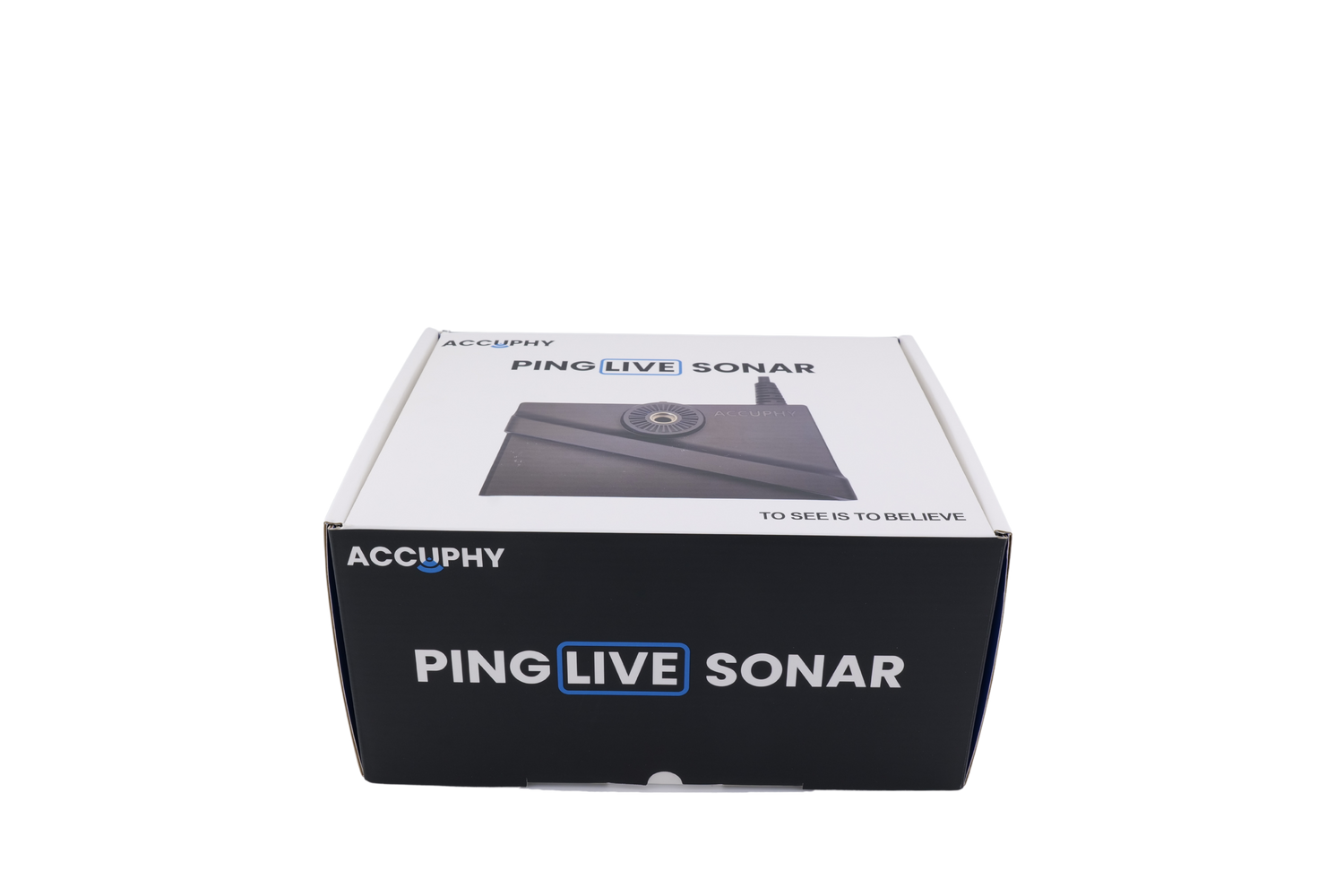

What's in the Box?
- PingLive transducer
- Wi-Fi Router
- Panoramic mount
- Barrel mount
- Shaft mount

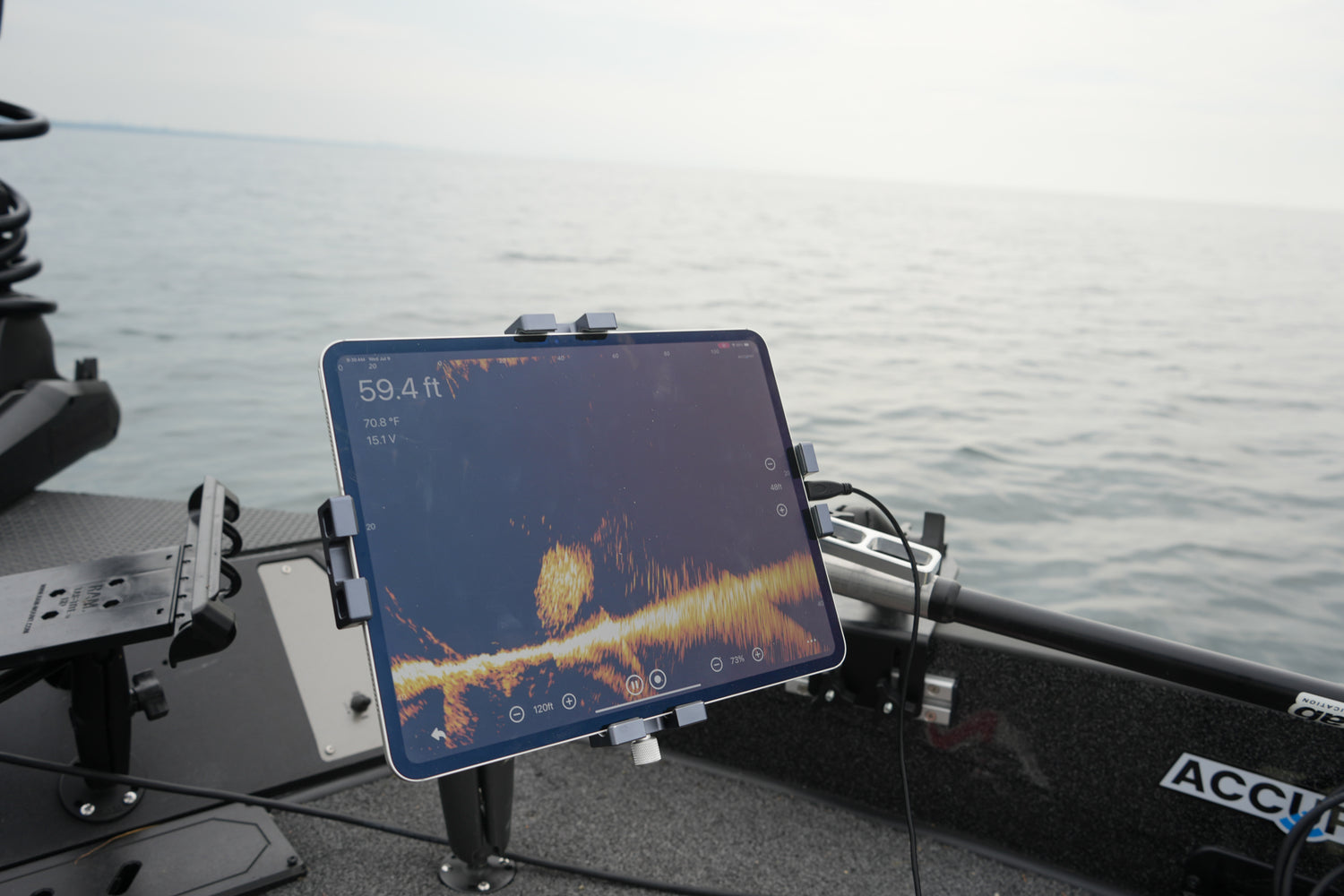

Viewing Options
Down View
Reveal underwater terrain with stunning clarity and detail directly beneath your vessel.
Forward View
See ahead of your boat in real time, identifying structure, fish, and obstacles instantly.
Panoramic View
Experience an ultra-wide scanning zone that captures maximum underwater awareness.
Viewing Options
Down View
Reveal underwater terrain with stunning clarity and detail directly beneath your vessel.
Forward View
See ahead of your boat in real time, identifying structure, fish, and obstacles instantly.
Panoramic View
Experience an ultra-wide scanning zone that captures maximum underwater awareness.

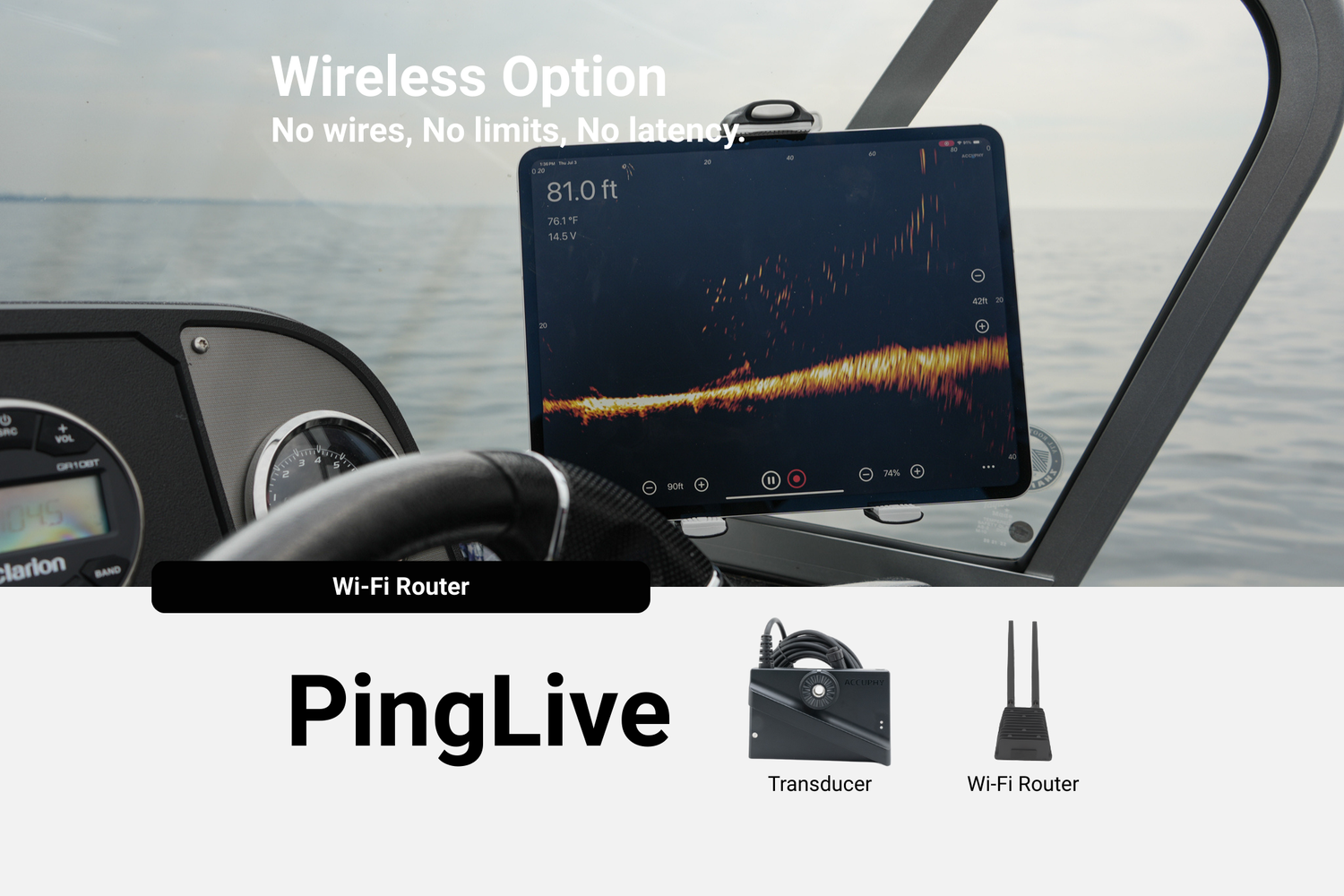

WI-FI CONNECTION.
No Latency · 5G Connection · 70ft Range · Live Imaging + Mobility
WI-FI CONNECTION.
No Latency · 5G Connection · 70ft Range · Live Imaging + Mobility

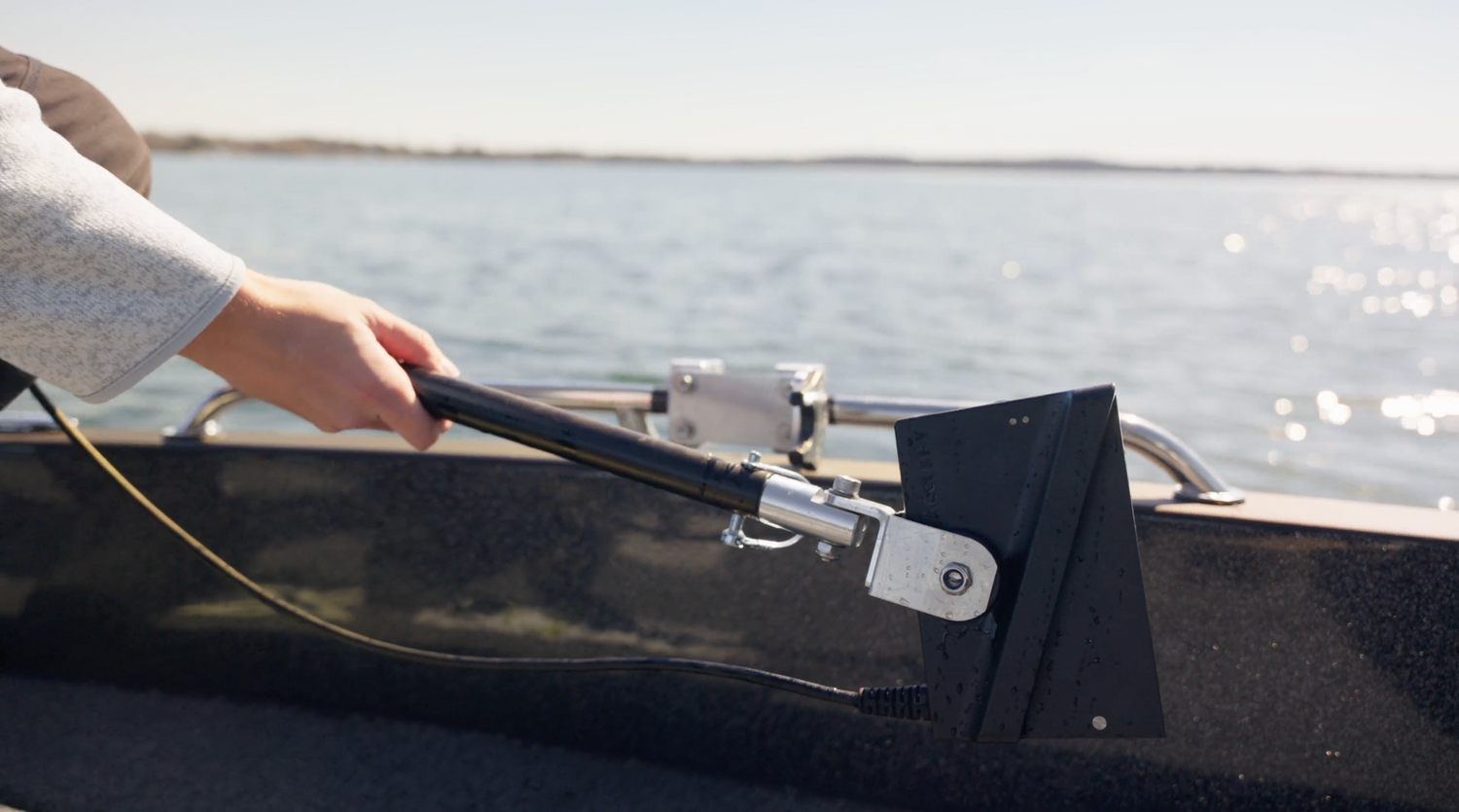

MOUNTING OPTIONS

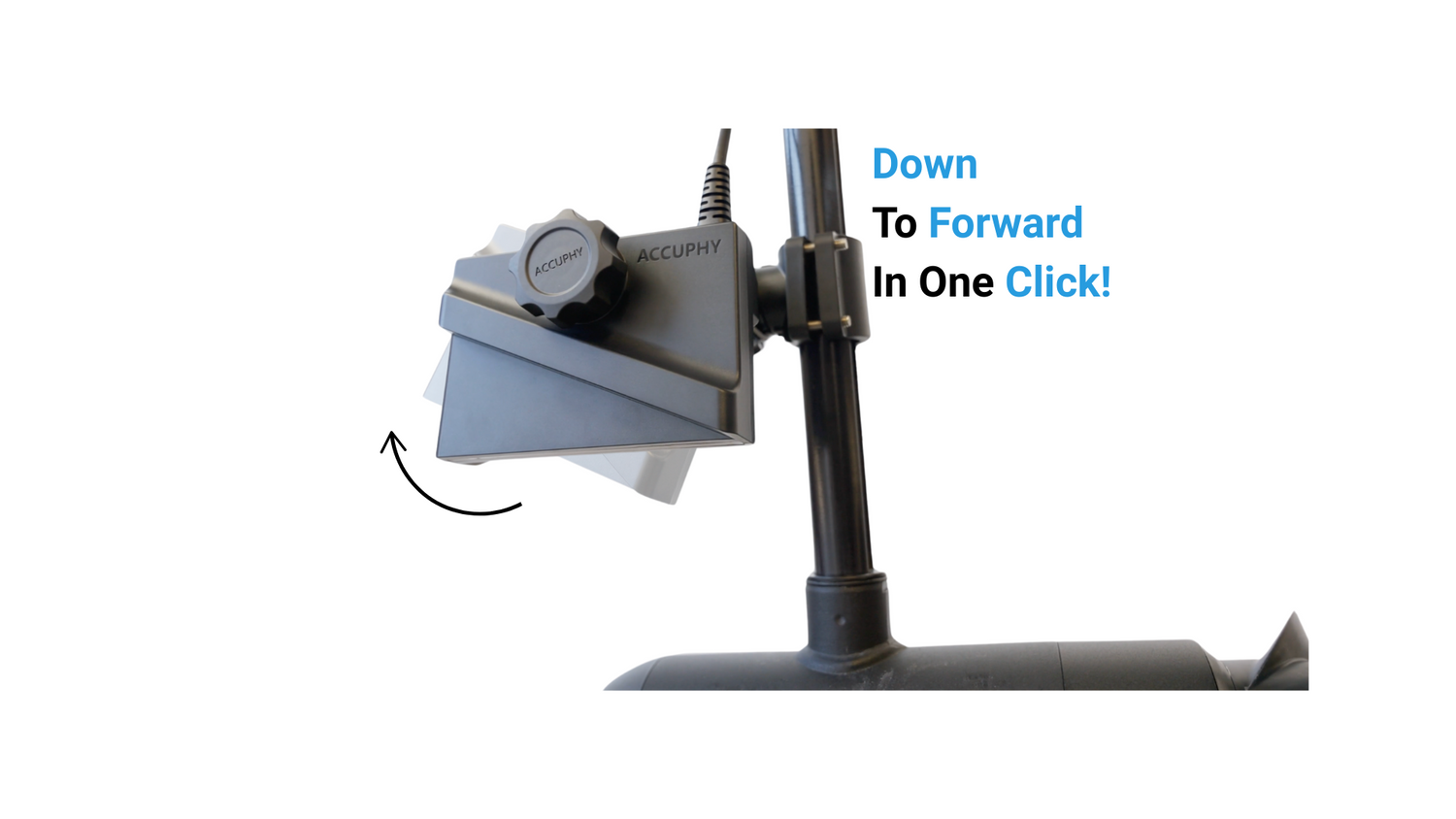

Shaft Mount
Barrel Mount
Panoramic Mount
Videos
Mounting parts are included in every package.
WHICH IS BEST FOR YOU?
PingLive
Ultimate Sonar Power & Precision
Starting at $1,749 CAD
PingLive Mini
Your Entry to Live Sonar Fishing
Starting at $887 CAD
WHICH IS BEST FOR YOU?
PingLive
Ultimate Sonar Power & Precision
Starting at $1,749 CAD
PingLive Mini
Your Entry to Live Sonar Fishing
Starting at $887 CAD
